Home Products PowerTear™
PowerTear™ Image

PowerTear™

M008HE

Elmendorf Tearing Tester

Brochure Share
Request Info
Product Details Standards Test Materials Get a Quote

Product Details

The versatile PowerTear™ High Energy Elmendorf Tear Tester determines falling pendulum tearing strength by propagating a single-rip tear starting from a cut in a sample of paper, cardboard, plastic, or fabric, woven or nonwoven.



The versatility of the instrument allows the testing of both light and heavy weight samples while the sleek new design will enhance the look of any laboratory.

Lever Clamps

Versatile

Allows for a wide range of capability for testing both fine and heavy weight specimens

  • Paper

  • Cardboard

  • Plastic

  • Textiles

  • Nonwovens

Lever clamps make sample loading faster and easier for the operator

Full Color Touch Screen Controller



The new full color touch screen controller makes the instrument even easier to operate while the enhanced unit conversion and results tracking will greatly increase the customer experience during testing. Results are displayed in mN, cN, N, g, kg, oz and lb.



The display shows the sample number and which pendulum is in use.



Microprocessor controller can store 100 test results in the instrument.

Pendulum and weights for 8 N, 16 N, 32 N, and 64 N are included (128 N pendulum kit optionally available).



The use of the optional “E” Pendulum increases the capacity of the PowerTear to 128 N, twice the capacity of many other devices on the market.

Safe

Specifically designed with the safety of the operator in mind

  • Two button release

  • Large base

  • Electromagnetic brake halts the pendulum after the test

Reliable

Sophisticated rotary encoder and the release pin bearing makes tests repeatable



Provides the greatest accuracy available

Accurate

Engineered to provide the most accurate results possible

  • Variable controls for pendulum zeroing provide greater control for more accurate results.
  • Adjustable pendulum balance allows the user to precisely determine the center of gravity and make changes as required.
  • Large platform ensures instrument stability during testing.

M008HE_2

Adaptable

Test weights and check weights come in acrylic racks for safe storage.

  • 8 N, 16 N, 32 N, 64 N provided

  • 128 N test weight and check weight optionally available

Functionality

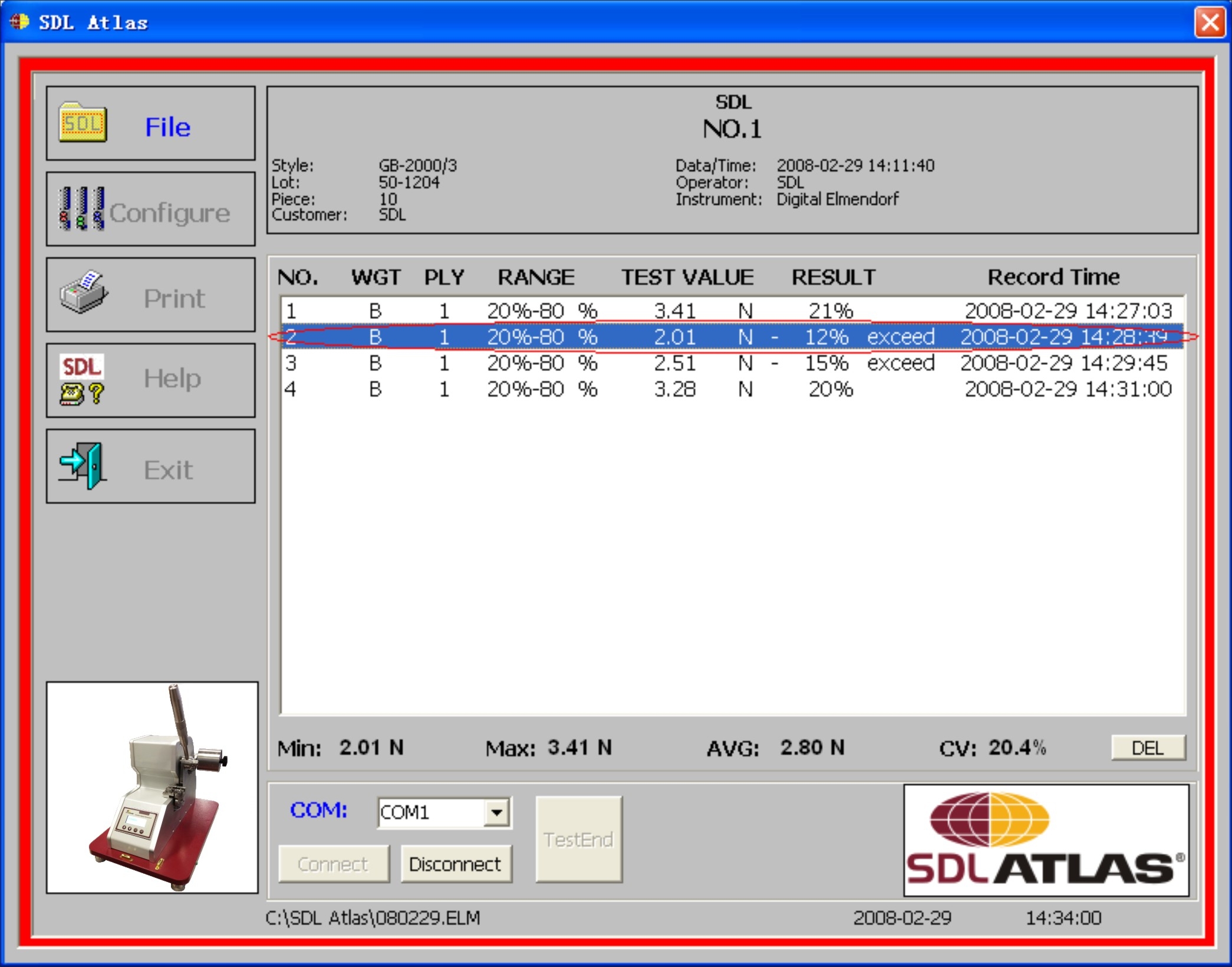

The PowerTear connects via USB to a PC for testing and data storage allowing for searchable records. Software allows inputting of:

  • Batch information

  • Remarks

  • Specimen descriptions

  • Ability to include or exclude particular test results

Customizable reports

Allows the user to select the desired result calculations which then can be generated and saved as a Microsoft Excel file.

Related Test Materials

Spare Cutting Blade

103999

Ordering Information

  • M008HE

    PowerTear™ Elmendorf Tester

  • 107014

    E Pendulum Kit
