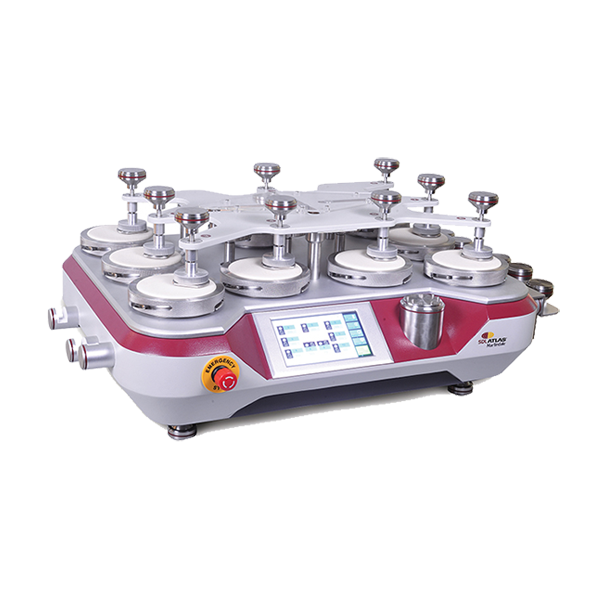

Martindale
M235 - Abrasion And Pilling Tester
For testing the abrasion and pilling resistance of all types of fabrics and other materials.
Request Info
Product Details
The Martindale is a versatile instrument capable of multiple abrasion and pilling tests.
It uses precision components to deliver the exact abrasion or pilling movement required by all international and retailer standards.
Sleek, Functional Design
Purposefully designed to enhance the ease of use and reliability of results
- Lightweight motion plate
- Strong and solid base feet to increase instrument stability
- Sliding pad design reduces noise of motion plate
Individual Station Lighting
Notification flash of the relevant station's light along with a notification beep indicates the end of a test.
Accessible

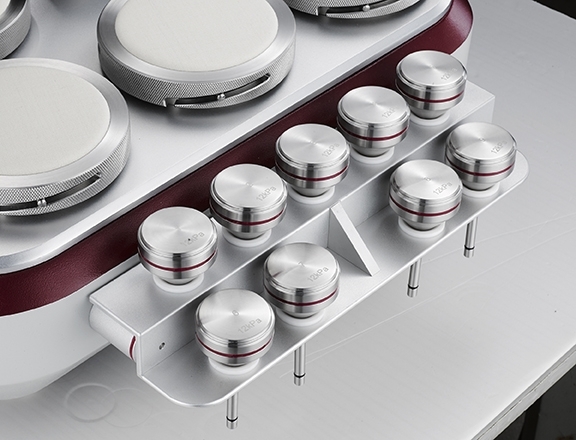

Motion plate storage rack incorporated into the side of the instrument to conserve lab space and allowing full access to all abrasion stations

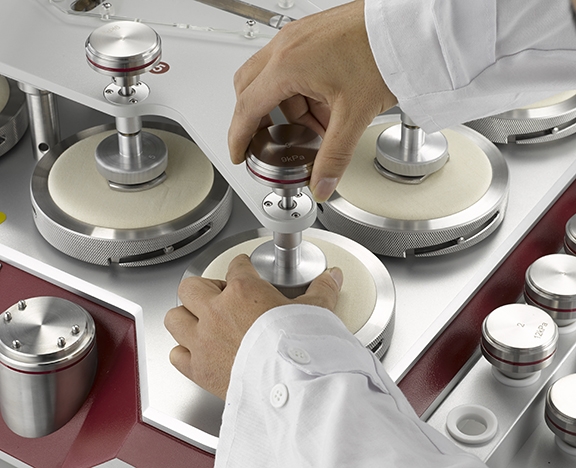

Enhanced sample holders allowing for quicker sample loading
Quick-lock couplers facilitate easy access for service and calibration

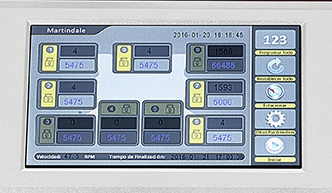

Full Color Touch Screen Controls
-
Most common functions accessible in one or two touches
-
Displays individual station counters
-
Test materials ordering information accessible directly on the instrument display
-
Multi-lingual interface with display options in English, Chinese, Spanish and Turkish
Designed for Adaptability
The Martindale Line can perform a variety of abrasion and pilling tests. The user-friendly design allows operators to easily change over testing station configurations with specialized enhancement kits.
Can be used for:
- Fabric Abrasion
- Fabric Pilling
- Sock Abrasion
- Leather Abrasion
- Edge Abrasion
- Testing Floor Coverings
- Toothbrush Testings
- Other Specialized Testings
Convenient
The compact base is designed to conserve valuable lab space while providing maximum testing capacity. Two sizes available:
-
Larger base can have 6, 8 or 9 test positions
-
Available in a smaller 4-position base
Instrument Comes Standard with:
-
Sample Holders
-
9 kPa and 12 kPa Weights for standard abrasion testing
-
Standard Mounting Device

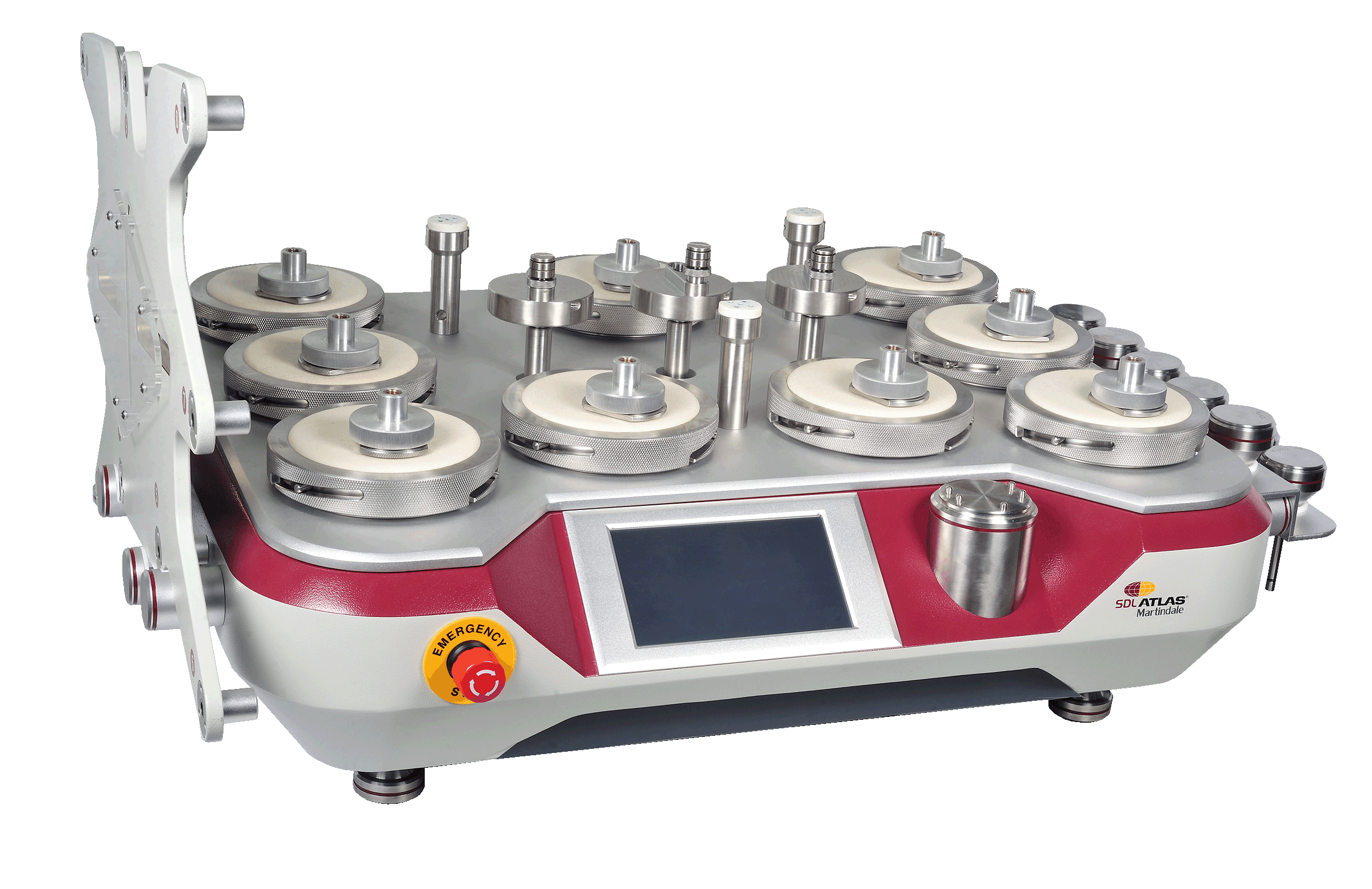

Side Mounted Storage Rack available as an option for the 6, 8 and 9 head models
Accessory Holder
Available separately to conveniently hold martindale accessories while not in use
Made from high quality acrylic and designed to be both practical and attractive
Quality Test Materials
SDL Atlas supplies a wide variety of consumables design specifically for testing on the Martindale Abrasion and Pilling Tester.
These high quality consumables will ensure that each test performed is accurate and reliable.
Compatible with RemoteAccess, the revolutionary Remote Instrument Monitoring Application.
Shows the remaining testing time against the end of the test.
Operators can track the real-time testing progress anytime, anywhere, on the go via RemoteAccess App (iOS and Android).
ARCADIA
ASTM
BS
BS EN
BS EN ISO
CEN
EN
GB
GMW
IS
ISO
IUP
IWSTM
IWTO
JIS
M&S
NEXT
NWSP
SATRA
SFS
SN
WSP
Related Test Materials

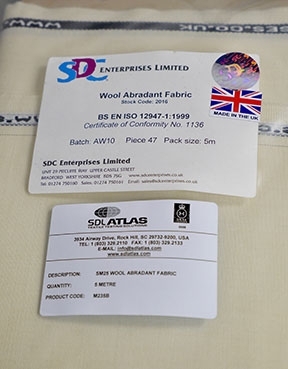

SM25 Wool Abradant Fabric - 5 Meters
403253

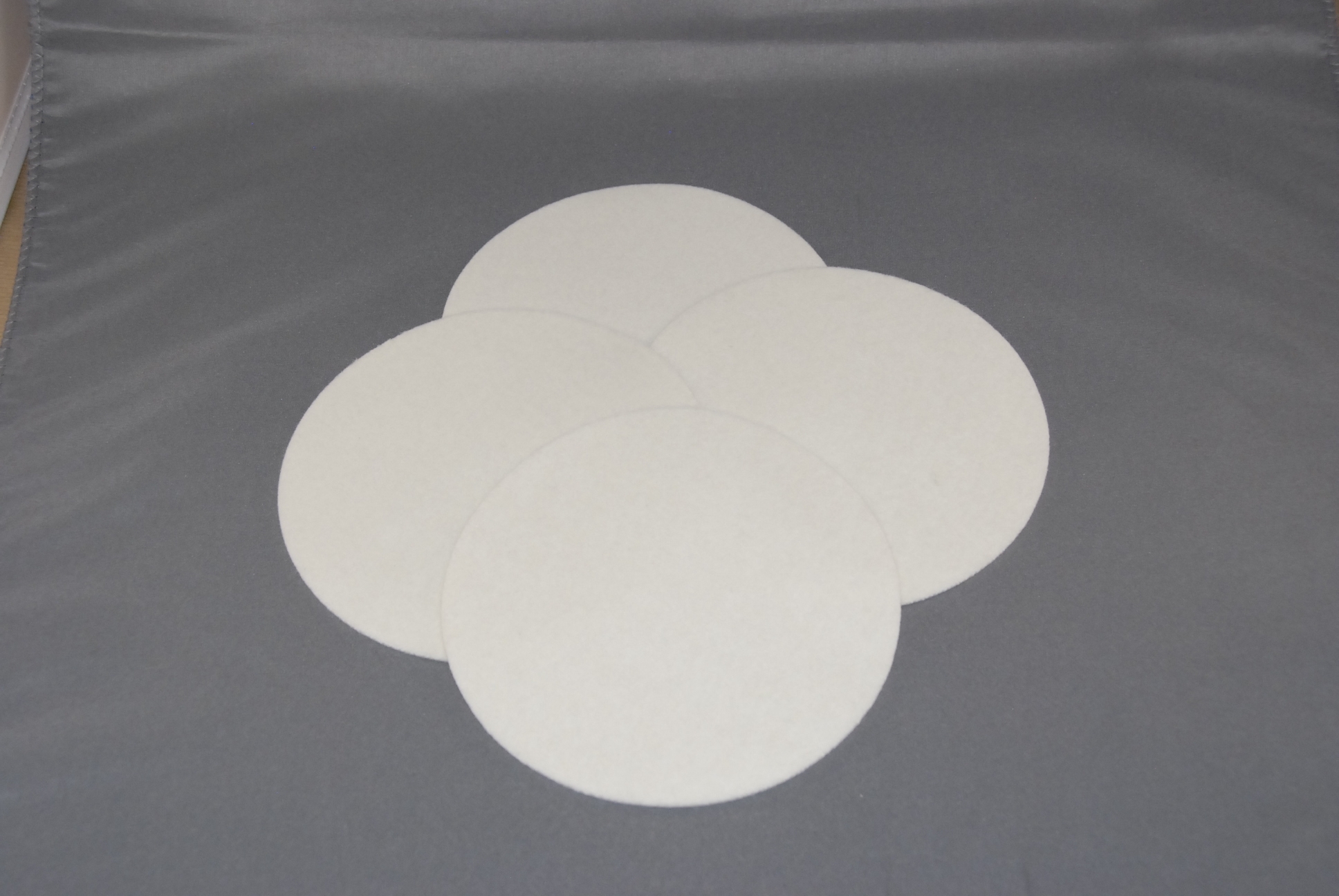

Woven Felt Discs 90 mm Diameter
200910
Felt Discs (Woven) 140 mm Diameter
200971
Felt Piece (Woven) 1 m x 1.5 m
200947
Felt Discs (Non-Woven) 140 mm Diameter Pack of 20
200946
Felt Piece (Non-Woven) 1 m x 1.5m
200945
Standard Backing Foam
108179
Standard Abrasion Sheets F2
200944
Silicon Carbide Paper
200943
Trizact Synthetic Abrasion Discs, Orange, 5 Microns, Pack of 25
203289
Trizact Synthetic Abrasion Discs, Green, 35 Microns Pack of 25
201077
Ordering Information
M235
4 Position Martindale
M235/3
6 Position Martindale
M235/8
8 Position Martindale
M235/9A
9 Position Martindale
105148
ISO Pilling Test Accessories (One position)
107703
Abrasion Station Enhancement Kit (One position)
107704
Acrylic Holder for Abrasion & Pilling Kits
107762
Optional Side Storage Rack
105153
Mounting Device for Pilling Sample
105151
Sock Abrasion Attachment (one position)
105158
Mounting Device for Sock Abrasion Sample
103911
Circular Sample Cutter - 50 cm²/80 mm dia 5 mm depth
103916
Abradant and Backing Felt Cutter - 154 cm²/140 mm diameter
204448
Pilling Photographs - Woven
201015
EMPA Photographs - Woven
201016
EMPA Photographs - Knitted
300879
Pilling Photographs - M&S P17 Method 1
Get a Quote
Please feel free to contact us via telephone or e-mail. We will gladly respond to you in a timely manner with answers to your questions.
