Home Products HydroPro: Hydrostatic Head Tester
HydroPro: Hydrostatic Head Tester Image

HydroPro: Hydrostatic Head Tester

M018

Hydrostatic Head Tester

Brochure Share
Request Info
Product Details Standards Get a Quote

Product Details

The best value Hydrostatic Head Tester available, the HydroPro is powerful, intelligent and efficient.



The HydroPro tests the water resistance of fabrics, determining the waterproof properties of fabrics such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextiles.

Image Description

Innovative



Video Recording and image capture show real time pressure for review after testing via computer software.

Functional


The HydroPro has a compact solid design that offers unmatched flexibility.



  • Delivers up to 5 bar (5000 cm2 H2O) of pressure

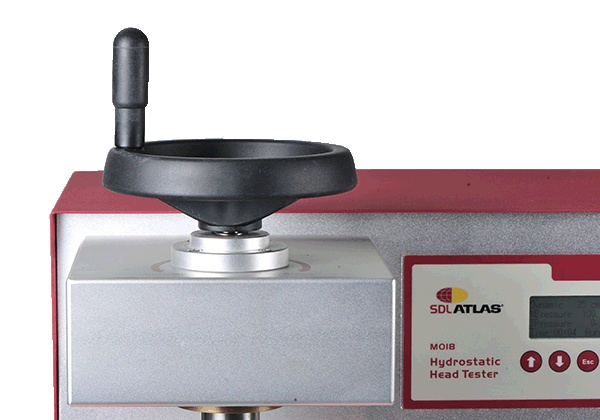

  • New pneumatic sample clamping to avoid slippage and leakage and securely holds samples of up to 30 mm thick


  • 100 cm2 test head included with additional sizes available separately.

Efficient

  • Automatic water filling and water level detecting



  • Fast-Test function allows users to rapidly determine a failure point and perform other tasks during the first 80% of a standard test time.



  • An alarm indicates fail pressure is close.


Easy View Test Head



The open framework allows operators unobstructed observation to easily monitor tests in progress.



  • Clear safety shield

​

  • LED lights illuminate the sample area.

Straightforward

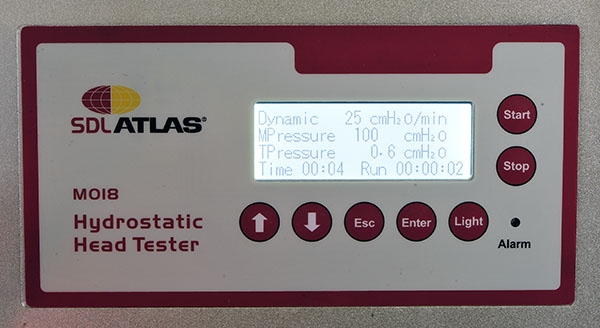

  • Full color touch screen controller with preloaded routines for popular standards and custom programs

​

  • Test results are calculated and displayed clearly throughout the sample assessment.



  • Results can be collected and stored on a PC with the included HyrdroPro Analysis Software.

Adaptable



Optional accessories allow for a variety of tests to be performed on the HydroPro including:


  • Blood Penetration Test with optional fixture for ASTM F1670, BS ISO 13994 and ISO 16603


  • Pore Size Test with optional fixture for BS 3321

RemoteAccess



Connects via Wi-Fi to our exclusive RemoteAccess App which alerts the operator when the test is 80% complete



Operators can track the real-time testing progress anytime, anywhere, on the go via RemoteAccess App (iOS and Android).

Ordering Information

  • M018

    HydroPro Hydrostatic Head Tester

  • 109241

    10 cm² Test Head

  • 109242

    19.63 cm² Test Head

  • 109243

    26 cm² Test Head

  • 109244

    28 cm² Test Head

  • 109240

    100 cm² Test Head

  • 106815

    Blood Penetration Attachment
    (ASTM F1670, BS ISO 13994 and ISO 16603)

  • 100160

    Pore Size Attachment (BS 3321)
