AutoFlamm Flammability Tester
M233B
Tests general clothing and vertically oriented fabrics according to European Standards
Request Info
Product Details
The AutoFlamm Flammability Tester meets the needs of those testing general apparel fabrics and vertically oriented fabrics to European standards.
These include home textiles such as curtains or drapes, bedding, table clothes and other items that hang down from furniture.
Now complies to EU Toy Safety: EN 71-2

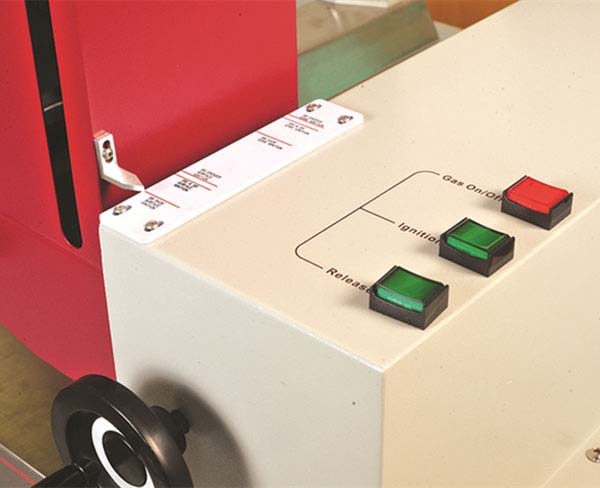

This fully automated instrument features:
- Motor-driven burner nozzles and micro switches to ensure automated operation
- Micro switches activated by ignition wires
- Automatic burner ignition
- Automatic burner positioning to ensure testing accuracy
Nozzle Angle
Burner tip motion regulated via motorized control allowing for Up/Down, Forward/Backward, and Rotating Angles (Surface, 30° Bottom edge, 45° and Vertical)
30° Nozzle Angle
Quickly and easily reconfigure to a wide range of interchangeable precision test frames and burners
Innovation and Convenience
Revolutionary clamp design for mounting the thread loads easily and holds it firmly in place
Complies to EU Toy Safety: EN 71-2
The AutoFlamm has been purposefully designed to meet EN 71-2 Safety of toys - Part 2. The burner tip can be easily adjusted to meet the different configurations required to fully meet the various parts of the standard including vertically oriented for parts 5.2 and 5.4 and 45° inclination for parts 5.3 and 5.5.

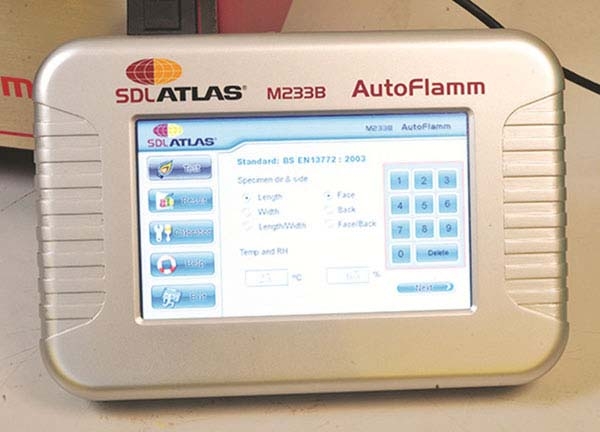

Easy to Use Software
-
Controlled via Computer or Tablet rather than separate control unit
-
Most popular standards and routines are preprogrammed into the software
-
Intuitive and easy to use PC software provided
-
All test results are included in the test report which is uploaded to the computer by USB cable or via Bluetooth (wireless)

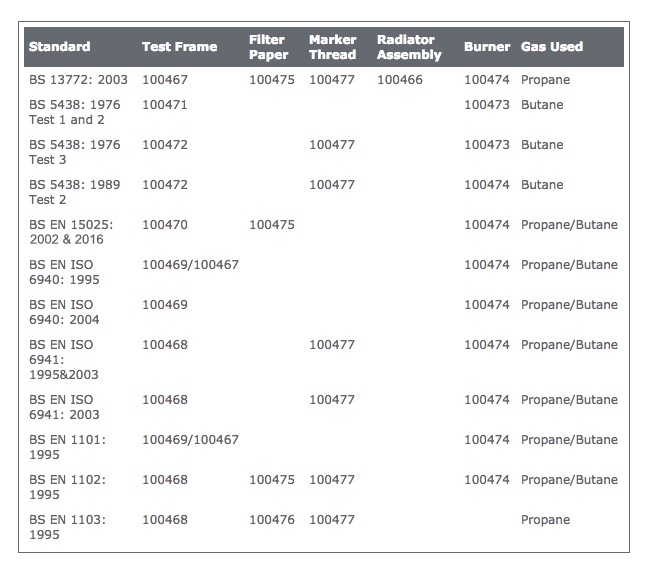

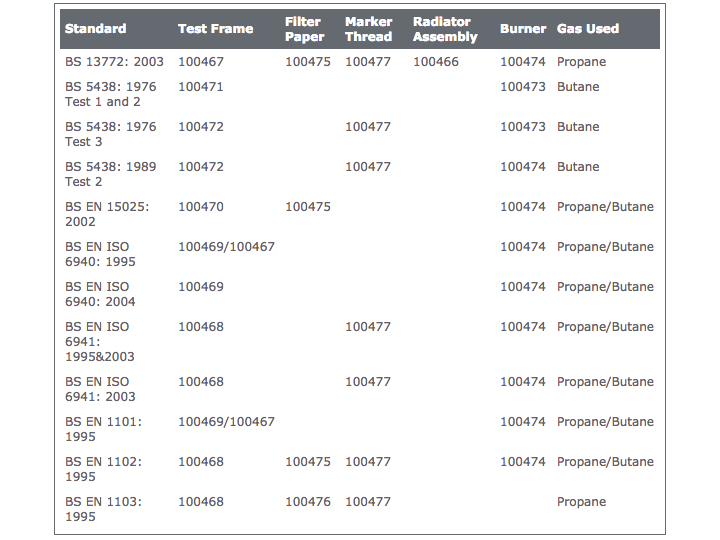

Ordering Information
M233B
AutoFlamm
108960
Optional Radiator Assembly for BS EN 13772:2003 - 220V/50Hz (Design 2020)
109086
Optional Radiator Assembly for BS EN 13772:2003 - 110V/60Hz (Design 2020)
100466
Optional Radiator Assembly for BS EN 13772:2003 - 220V/50Hz for M223B
108958
Pin Frame & Template for EN 71-2 section 5.4
